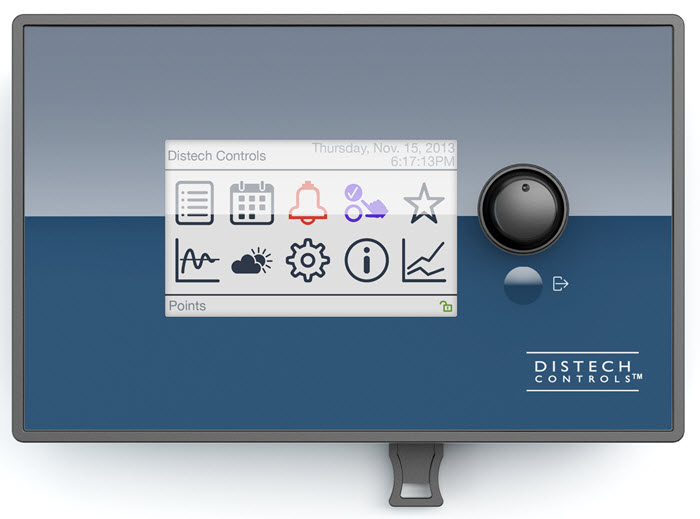

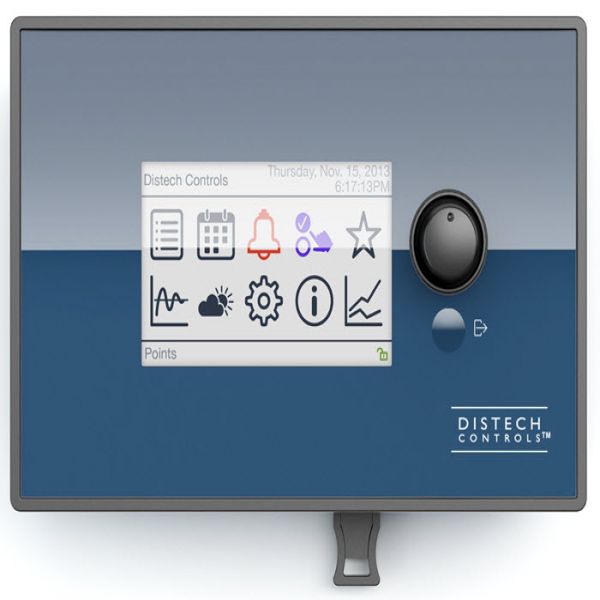

ECx-Display
Mã sản phẩm : 07

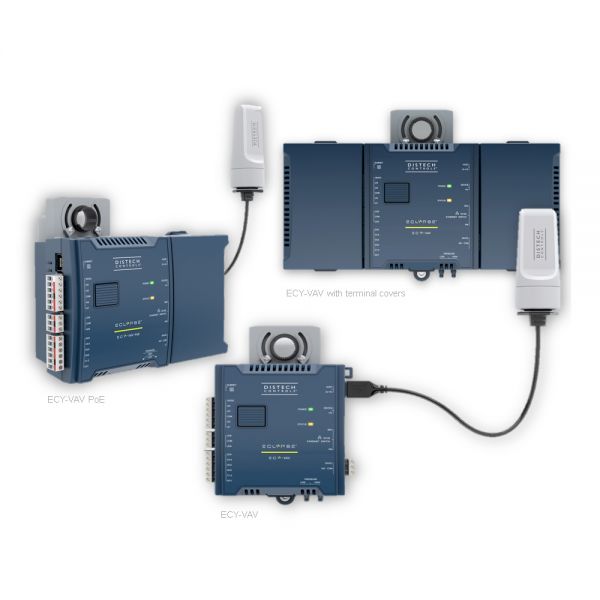

Streamlined mechanical room display for your ECB series BACnet® controllers, ECL series LonWorks® controllers, and ECY series ECLYPSE Connected BACnet/IP and Wi-Fi controllers. Managers and technicians will benefit from this powerful, user-friendly color backlit LCD display, providing convenient access to important system data in real time - Distech Controls/ Made in Canada.
Preloaded with a visual interface:
View, edit, and override values and configure schedule and calendar
View Tune PID loops with system response graphing
View and acknowledge alarms
Set up a list of favorites to rapidly access commonly-used values
Perform diagnostics and take corrective actions such as overriding a sensor, pump, fan, or changing a setpoint
Test and commission HVAC systems singlehandedly
Simplified installation:
Can be DIN rail or panel mounted, or used as a handheld device for servicing
Connects directly to controllers using a dedicated subnet port
Option of connecting Allure EC-Smart-Vue and ECx-Display to the same controller with the ECx-Subnet-Adapter
Easy-to-use, rugged design:
Convenient jog-dial offers quick and easy navigation
With an IP-54 Rating, the ECx-Display is dust and splash resistant
Black enclosure offered with your choice of a blue or black LEXAN™ face
Catalogue: http://www.distech-controls.com/~/media/Files/Datasheets/Room%20Devices/ECx-Display_DS_12_EN.ashx
