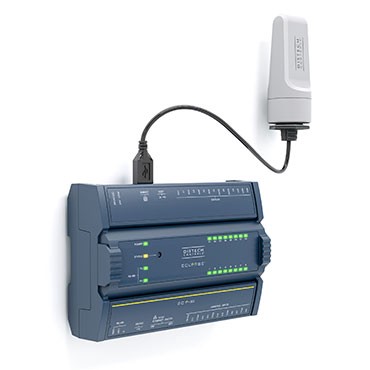

ECLYPSE Connected Equipment Controllers – ECY-303 Series

Product code : 02

Designed to control rooftop units and small air handling units, as well as heat pumps, fan coils and chilled beam applications, features a diversified I/O count in a compact design and footprint for easy in-cabinet installation - Distech Controls/ Made in Canada

Liên hệ để đặt hàng: am1@goldenkey.net.vn
Quantity:

    • All-in-one controller, combining power supply, server, and a diversified I/O count
      • 8 universal inputs
      • 4 x 24VAC triac digital outputs
      • 2 universal outputs
      • 2 field configurable outputs (24VAC triac digital or universal)
    • Configure pre-loaded applications with embedded ENVYSION or with an Allure™ EC-Smart-Vue communicating sensor, or fully customize with EC-gfxProgram
    • Integrated fail-safe feature allowing for increased redundancy and reliability in your IP-wired daisy chain: in case of power failure to one controller, communication data is still relayed to the following controller on the daisy-chain
    • Operating temperature range suited for installation in outdoor equipment
    • Supports the Smart Room Control solution, for a unified, end-to-end solution for the control of HVAC, lighting, and shades/sunblind
    • Select models support up to 3 Modbus RTU and TCP/IP devices to cost effectively integrate meters, VFDs etc
    • Supports "direct connection" to EC-gfxProgram, graphical programming interface, and mobile apps
    • With embedded ENVYSION, web-based graphic design and visualization interface, for hosting of system-based graphics, and visualization of schedules, alarms, and trend logs directly from the controller
    • Daisy-chain up to 4 Allure series communicating sensors via the dedicated subnet port
    • Catalogue: http://www.distech-controls.com/~/media/Files/Datasheets/21%20-%20ECLYPSE%20Products/ECY-303/ECY-303_DS_13_EN.ashx
